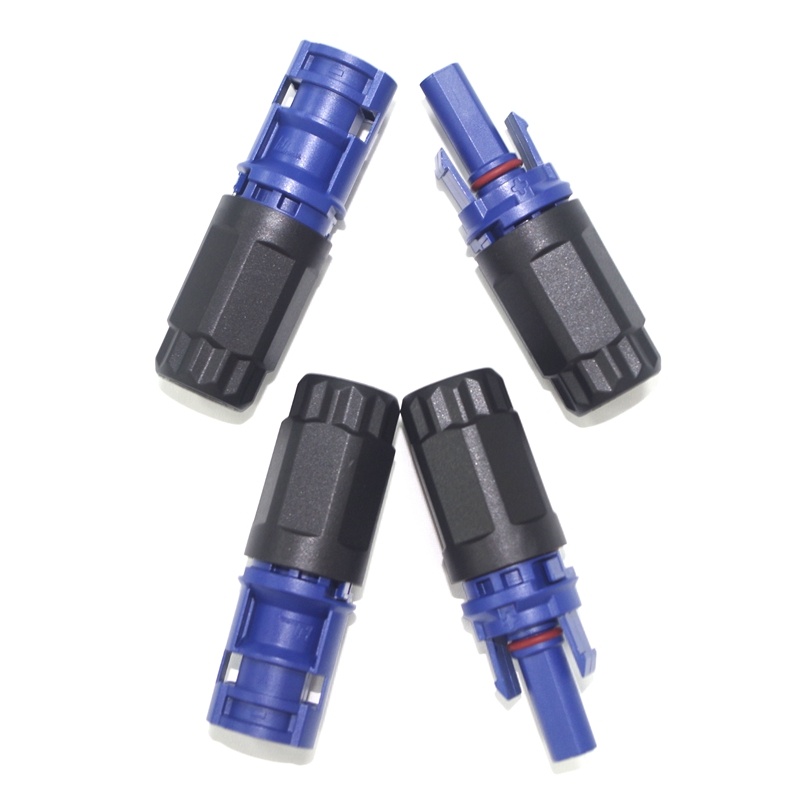

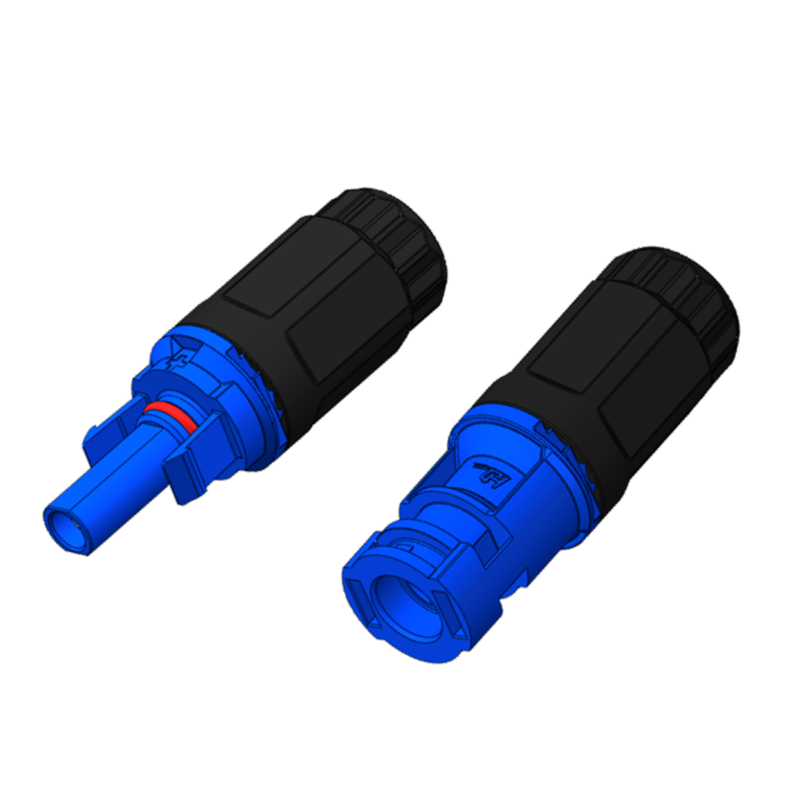

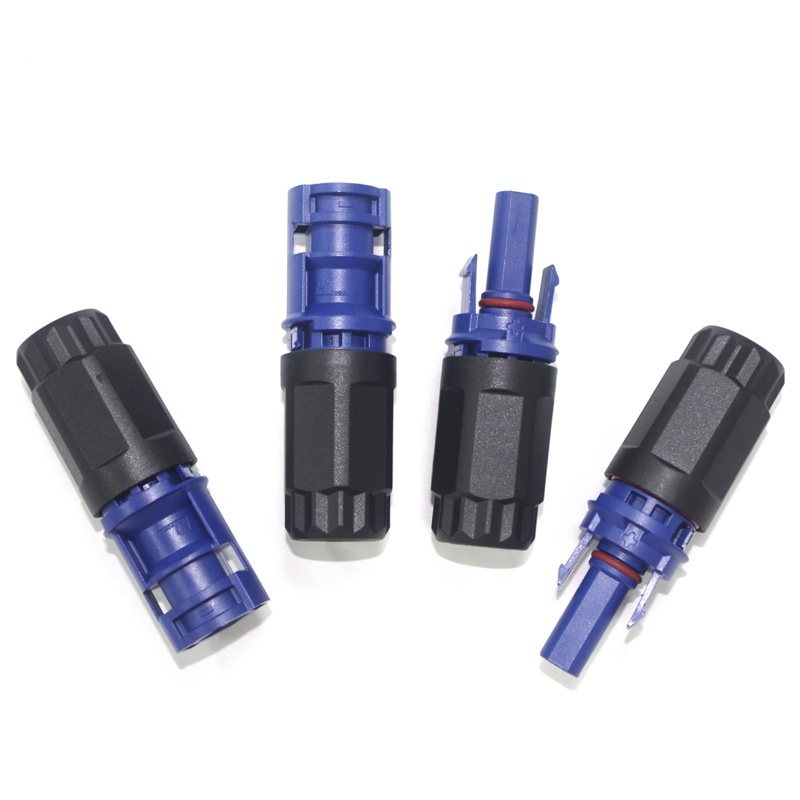

ES Battery Cable Connector

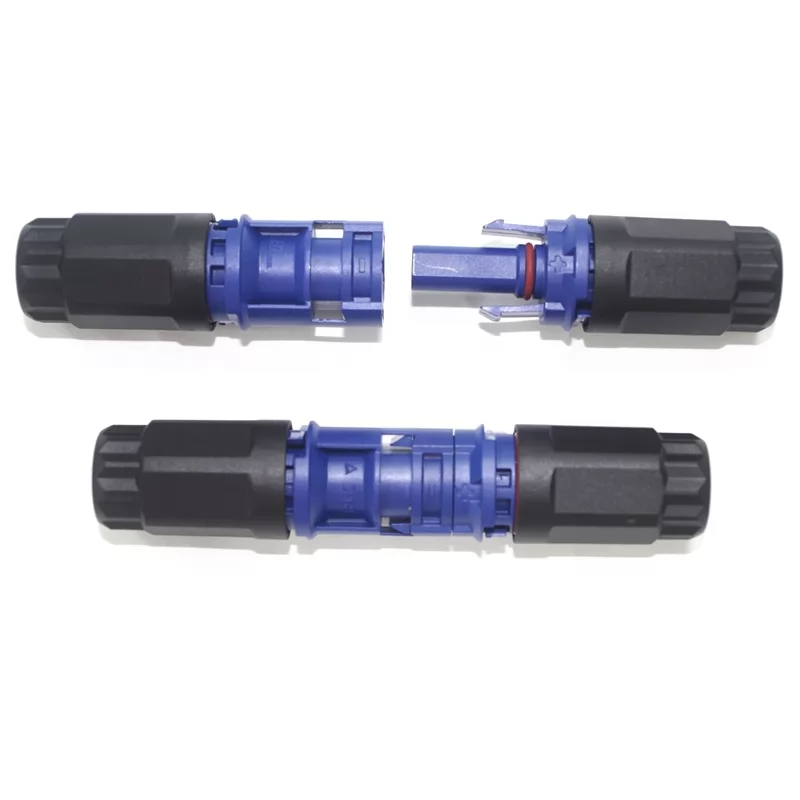

Not like the traditional connectors with crimping type and riveting type. HD ES battery connetors are with pins already assembled with connector shell, insert the cable and screwing it will be make the installation finsihed.

both 10mm² and 16mm² are available for easy and safe installation.

Matched with HD ES Panel Mount connectors for battery positive and negative port.

Get a Quote

Technical Data

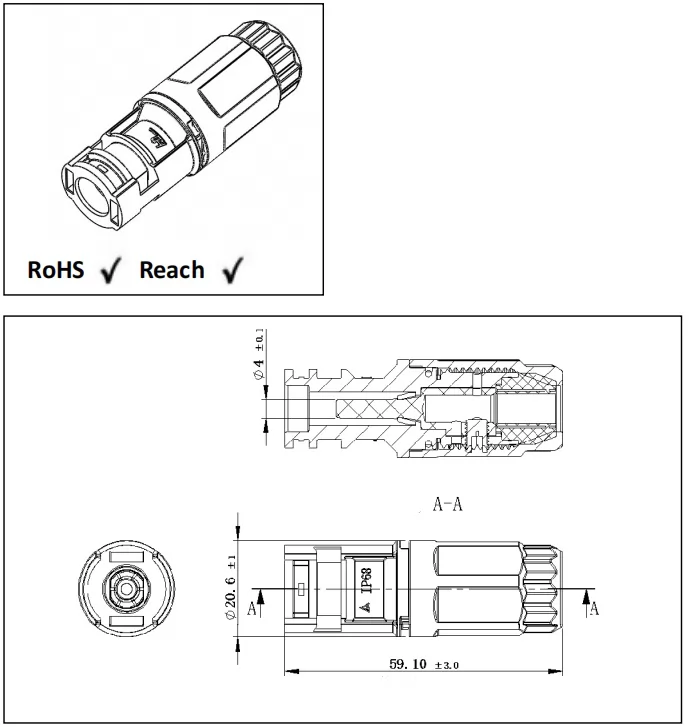

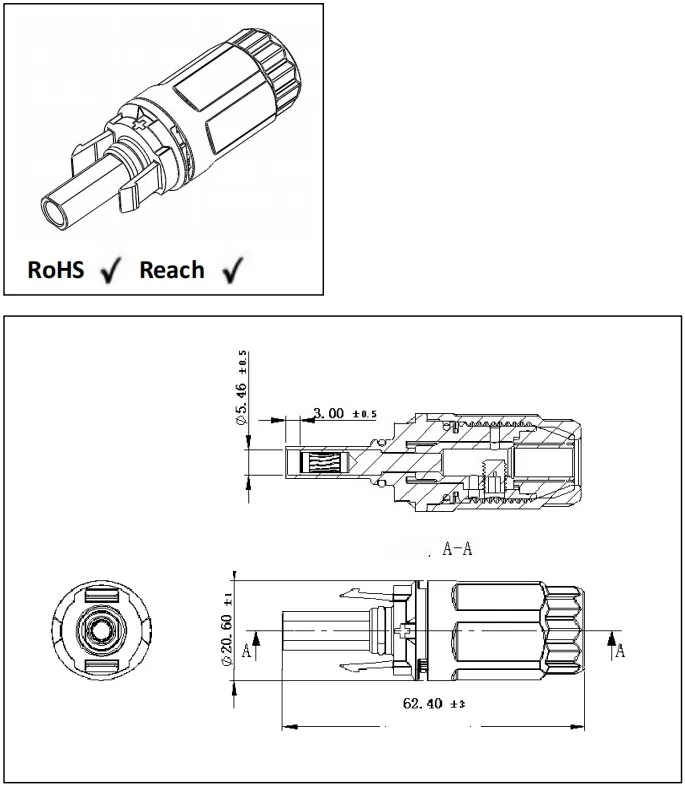

Model	HDC-G7m1	HDC-G7f1
Electrical(AC Port)
Rated Voltage	1000V DC	1000V DC
Rated Impulse Voltage	12KV	12KV
Rated Current (85℃)	70A (10-16mm²)	70A (10-16mm²)
Wet Insulation Resistance	≥500MΩ	≥500MΩ
Contact Resistance	≤0.25mΩ	≤0.25mΩ
Mechanical
Mating Cycle	≥500	≥500
PIN Retention Force	≥80N	≥80N
Wire Size	10-16mm²	10-16mm²
Cable OD	6.0-9.5mm	6.0-9.5mm
Unlock Mode	Tool Unlock	Tool Unlock
Environmental
Waterproof Rate	IP65/IP68 (1m, 1H)	IP65/IP68 (1m, 1H)
Application Temperature	-40℃~ 85℃	-40℃~ 85℃
Flamming Level	UL94-V0	UL94-V0
Material
Plastic Material	PC(f1)+ PA(f1 BLACK)	PC(f1)+ PA(f1 BLACK)
AC Pin Material	Copper Alloy, Ag Plating	Copper Alloy, Ag Plating
Sealing Material	Sillicone Rubber	Sillicone Rubber
