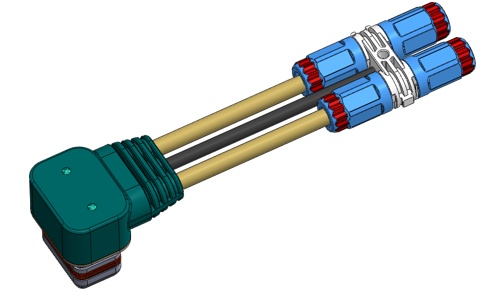

3+18PIN Floating Blind Mate Connector

Not like the traditional connectors with too much wires and waste the space, HD integrated COM and AC together into the connector all-in-one. also COM 18pins max. within golden figner PCB, save the cost and space inside the machine. Floating blind mate function for high effective installation progress.

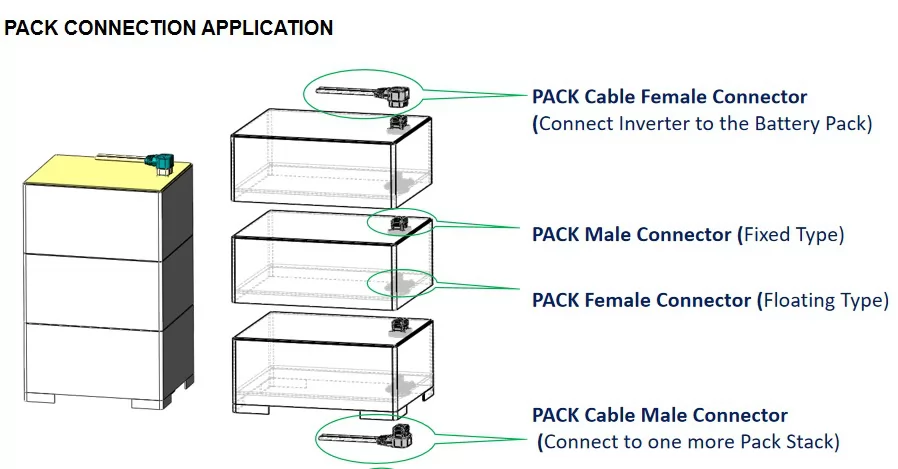

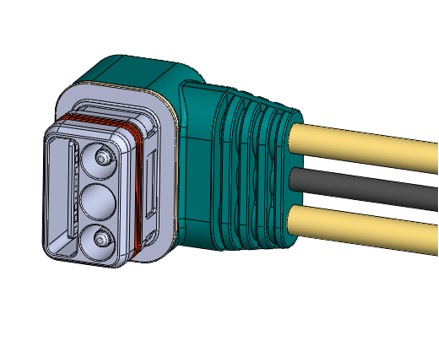

Plug (Panel Male ) side macthed well with the Receptacle (Panel female) side,

Moreover, customized wires are welcome.

Get a Quote

Technical Data

Model	HDC-70i3m2	HDC-120i3m2
Electrical(AC Port)
Rated Voltage	1500V DC	1500V DC
Rated Impulse Voltage	8KV	8KV
Rated Current (85℃)	70A (6-16mm²)	120A for 25mm²
Wet Insulation Resistance	≥500MΩ	≥500MΩ
Contact Resistance	≤0.3mΩ	≤0.3mΩ
Electrical(COM Port)
Rated Voltage	150V DC	150V DC
Rated Impulse Voltage	1000V DC	1000V DC
Rated Current (85℃)	3A (20AWG-26AWG)	3A (20AWG-26AWG)
Wet Insulation Resistance	≥500MΩ	≥500MΩ
Contact Resistance	≤20mΩ	≤0.3mΩ
Environmental
Waterproof Rate	IP65/IP68 (1m, 1H)	IP65/IP68 (1m, 1H)
Application Temperature	-40℃~ 85℃	-40℃~ 85℃
Flamming Level	UL94-V0	UL94-V0
Material
Plastic Material	PA(f1), BK	PA(f1)
AC Pin Material	Copper Alloy, Ag Plating	Copper Alloy, Ag Plating
COM Pin Material	Copper Alloy, Au Plating	Copper Alloy, Au Plating
Sealing Material	Sillicone Rubber	Sillicone Rubber
PIN Arrangement
AC Pins	3 Pins	3 Pins
COM Pins	18 Pins	18 Pins

PV Solar Connector

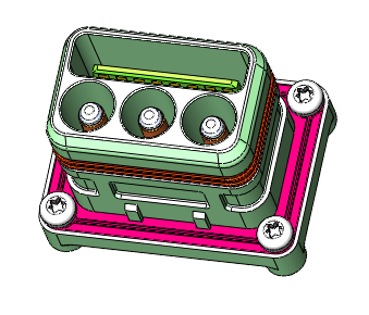

3+18PIN Floating Blind Mate Connector-Receptacle Side
