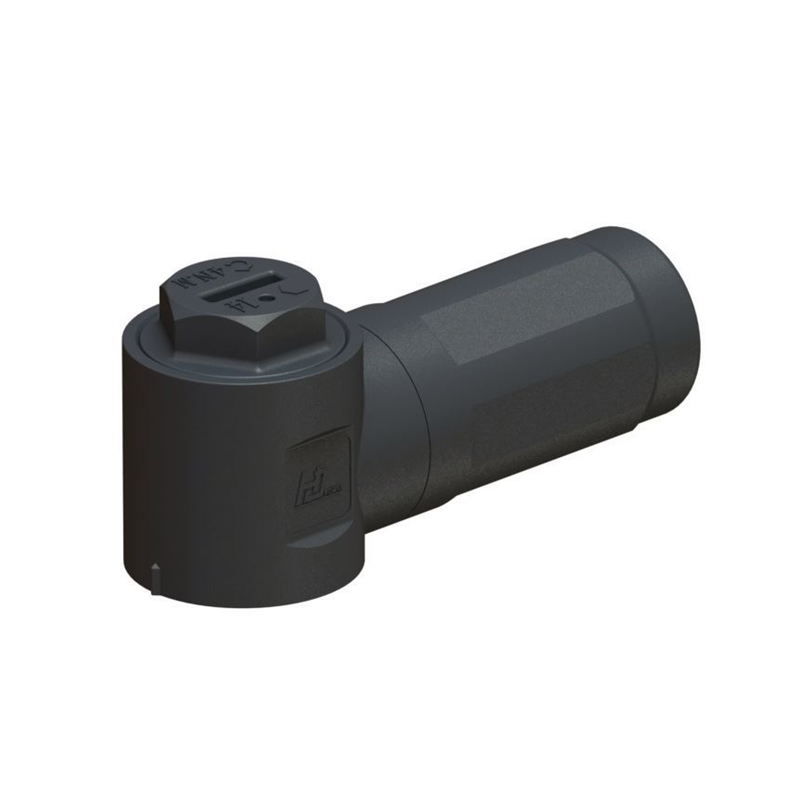

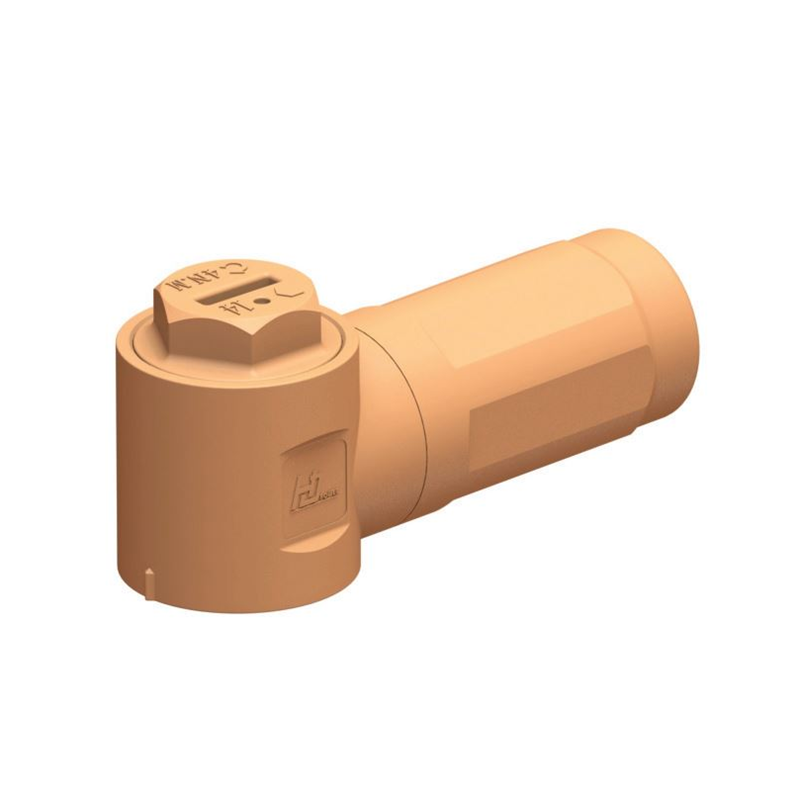

120A ES Battery Connector

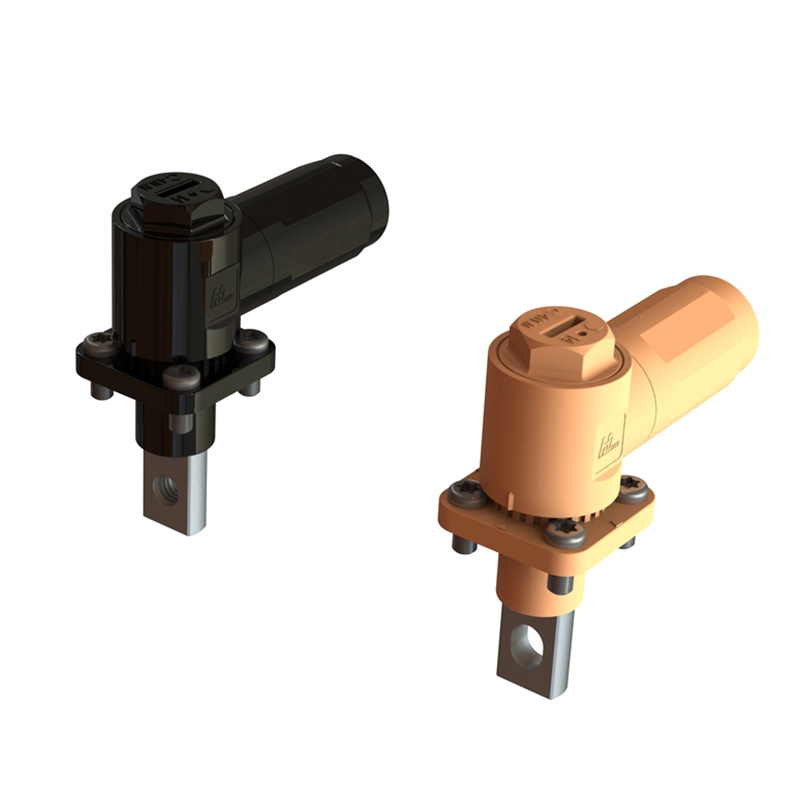

HD ES Battery Conenctor, 120A rated current with positive and negative 2 ports for Inverter and battery DC + - port, black and orange color for color fool-proofing.

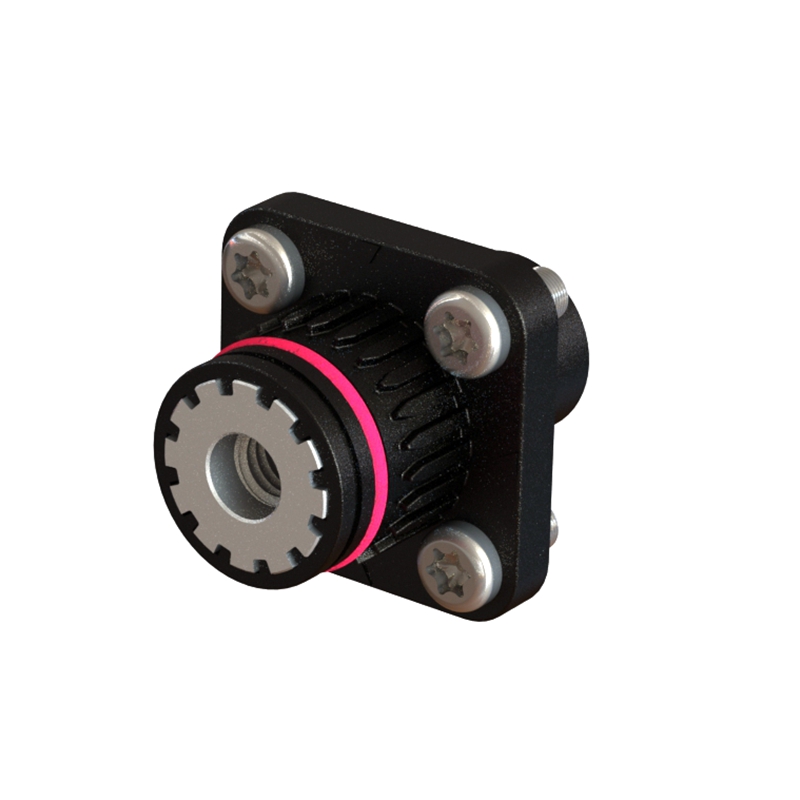

Panel connector side integrated with high quality Copper busbar,

save the space and cost to received non-wire function, leading for green powerful energy.

Get a Quote

Technical Data

Model	HDC-120i1f2	HDC-120i1m1
Electrical Specification
Rated Voltage	1500V DC	1500V DC
Rated Impulse Voltage	8000V	8000V
Rated Current	120A	120A
Insulation Resistance	≥500MΩ	≥500MΩ
Contact Resistance	≤0.1mΩ	≤0.1mΩ
Mechanical Specification
PIN Retention Force	≥80N	≥80N
Wire Size	16mm²~25mm²	16mm²~25mm²
Screw Torsion Force	4.0 ±0.1N·m	4.0 ±0.1N·m
Environmental Specification
Waterproof Rate	IP68 (1m 2H) (After Plug-in)	IP68 (1m 2H) (After Plug-in)
Application Temperature	-40℃~+85℃	-40℃~+85℃
Flamming Level	UL94-V0	UL94-V0
Material
Plastic Material	PA(f1)	PA(f1)
Pin Material	Copper Alloy	Copper Alloy
Sealing Material	Sillicone Rubber	Sillicone Rubber
