Solar Fuse Connector

With minimal energy loss, low heat generation, robust housing combined with the mating face of the HD PV Solar Cable and panel connectors, Handa offers the ideal fuse products for your PV-systems.

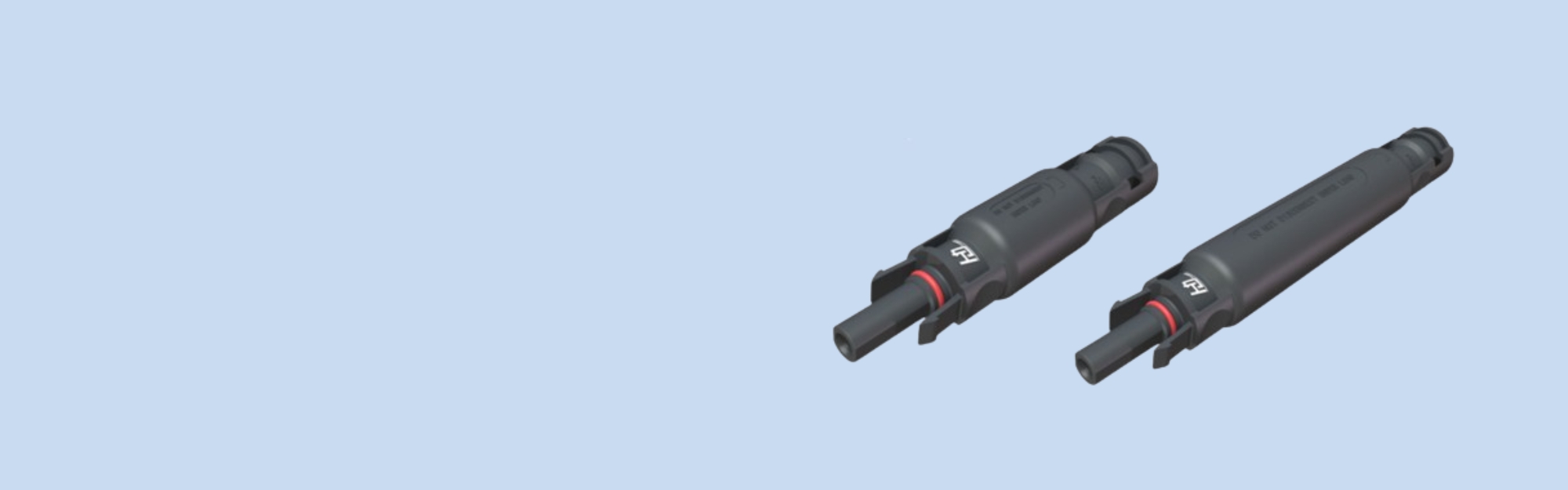

HD fuse connectors 1000V and 1500v, protects components within a PV string from overcurrent. This harness assembly is tailor-made solution with configurations according to customer’s specifications.

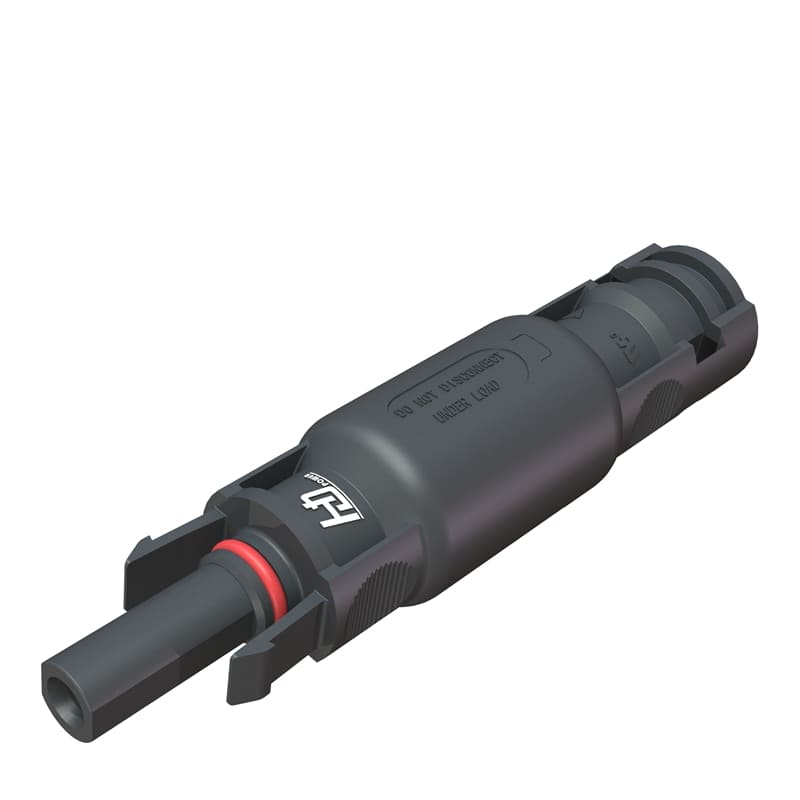

Solar Fuse Connector 1000V

With minimal energy loss, low heat generation, robust housing combined with the mating face of the Original HD PV solar cable and panel, branch connector, Handa offers the ideal fuse products for your PV-systems.this one is shorter length with 1000V voltage, fuse inside can be tool replaced and fuse amperage is from 2A to 32A maximum for your specific voltage and current requirement to protects components within a PV string from overcurrent.

Technical Data

Rated Voltage	1000V DC
Rated Impulse Voltage	12KV
Rated Current	32A MAX
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤0.25mΩ
Overvoltage Category/ Pollution Degree	CAT III/2
Safety Class	Ⅱ

Solar Fuse Connector 1500V

With minimal energy loss, low heat generation, robust housing combined with the mating face of the Original HD PV solar cable and panel, branch connector, Handa offers the ideal fuse products for your PV-systems.this one is longer length with 1500V voltage, fuse inside can be tool replaced and fuse amperage is from 2A to 32A maximum for your specific voltage and current requirement to protects components within a PV string from overcurrent.

Technical Data

Rated Voltage	1500V DC
Rated Impulse Voltage	16KV
Rated Current	32A MAX
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤0.25mΩ
Overvoltage Category/ Pollution Degree	CAT III/2
Safety Class	Ⅱ

Handa HD Solar Connectors for Various Application Scenarios

HD Solar Connectors, Make Connection Simplier

HANDA Power Technology, excels as a leading global manufacturer of solar connectors. In addition to our comprehensive product portfolio, which includes solar PV connectors, solar AC power connectors, solar communication connectors, and solar energy storgae connectors. Besides the diverse standarded solar connectors, HD specialize in customized connectors and solutions tailored for harsh environments. This adaptability and innovation in our product range address the specific needs of diverse solar industry applications such as household roof, balcony,PV farm,solar smart bracket system, commercial and industrial solar system and other demanding solar applications.

We are delighted to discuss your specific connector needs with you. Please fill out the form below to request more information about connector. A member of our team will respond within one working day to discuss your requirements.
