Solar DC Connector

Handa presents the various models of PV Solar Connector, including solar cable connectors, solar panel connectors, solar panel mount on-board connectors, PV fuse connectors, PV branch connectors etc.

With a higher ampacity than the industry standard connector, it provides exceptional performance. Handa HD brand PV DC solar connectors is available in three different wire gauges: 30A (2.5mm², 14 AWG), 41A (4.0mm², 12 AWG), and 55A (6.0mm², 10 AWG), offers a range of options to suit various solar power needs.

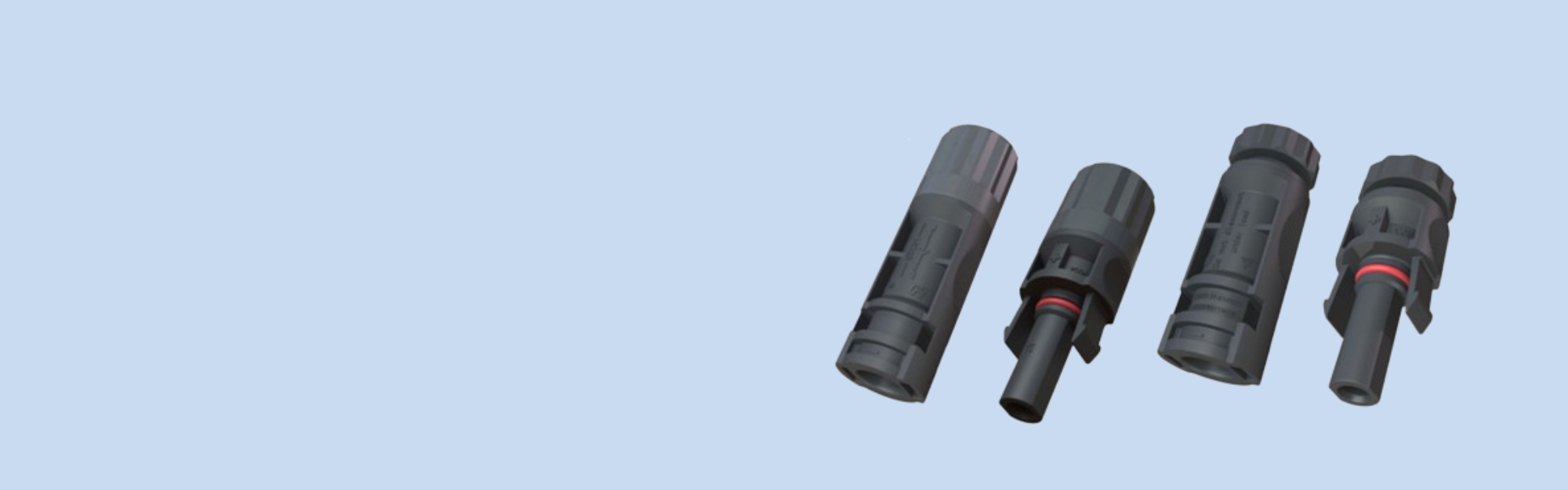

PV Solar Male Female Cable Connector

The Handa HD HDC4 PV solar connectors are 1500V TUV and CSA certified, made with pure red copper pins. They support 2.5mm² (30A), 4mm² (41A), and 6mm² (55A) wiring and are compatible with major solar connector models.

Technical Data

Rated Voltage	1500V DC
Rated Impulse Voltage	16KV
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤0.25mΩ
Overvoltage category/Pollution degree	CAT III/2
Safety class	II

PV Solar Male Female Panel Mount Connector

Handa HD HDC4 panel mount PV Solar connectors can be directly mounted, by means of screw thread. It is the ideal solution to connect your PV solar cable male and female connectors as a string input to an inverter or a MLPE device.

Technical Data

Rated Voltage	1500V DC
Rated Impulse Voltage	16KV
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤0.25mΩ
Overvoltage category/Pollution degree	CAT III/2
Safety class	II

PV Panel Mount Positive Negative Connector

Handa HD PV Panel Mount Positive Negative Connector is the 2nd upgrade version of Handa HD HDC4 panel mount PV Solar connectors, updated the size from M12 to M20 and mounted nut from rear mounting to easier front screw for more convenient on-site installation.

Technical Data

Rated Voltage	1500V DC
Rated Impulse Voltage	16KV
Rated Current	55A
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤0.3mΩ

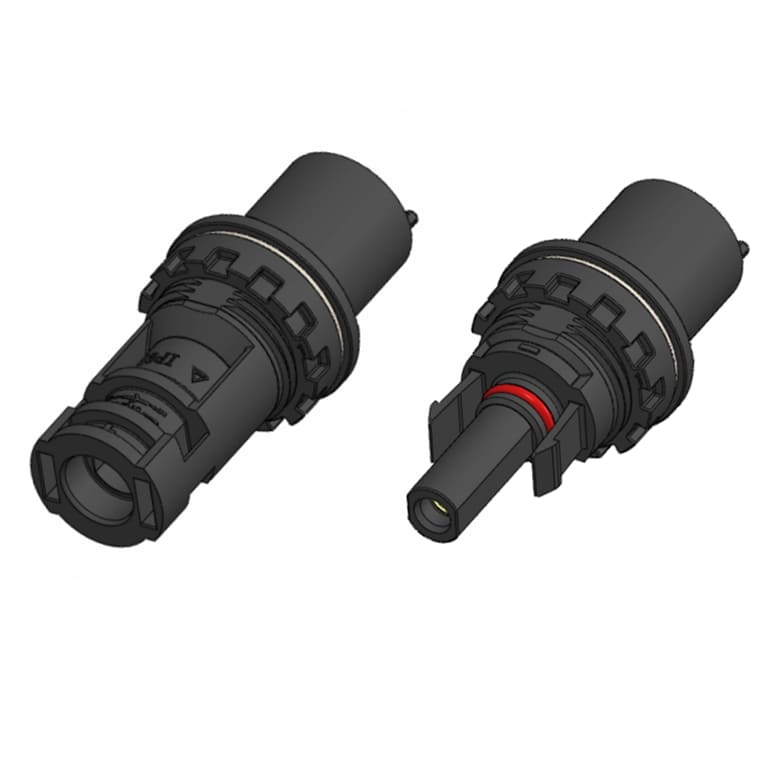

PV Panel Mount On-Board Connector

Handa HD PV Panel Mount On-Board Connector is the 3rd upgrade version of Handa HD HDC4 panel mount PV Solar connectors,updated the size from M12 to M20, nut rear locking to easier front locking and making the copper pins' crimping type to advanced pins panel soldering on-board.the pins is all-in-one style without any breakpoint(Reduce the risk of burning caused by poor contact).

Technical Data

Rated Voltage	1500V DC
Rated Impulse Voltage	16KV
Rated Current	55A
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤0.3mΩ

PV Panel On-Board Conenctor +NTC

Handa HD PV Panel On-Board Conenctor +NTC is the newest upgrade version of Handa HD HDC4 panel mount PV Solar connectors,updated the size from M12 to M20, nut rear locking to easier front locking and making the copper pins' crimping type to advanced pins panel soldering on-board,the pins is all-in-one style without any breakpoint(Reduce the risk of burning caused by poor contact). what's more, it within NTC function integrated, make sure faster temperature monitoring to better protect your solar system.

Technical Data

Rated Voltage	1500V DC
Rated Impulse Voltage	16KV
Rated Current	55A
Wet Insulation Resistance	≥500MΩ
Contact Resistance	≤0.3mΩ

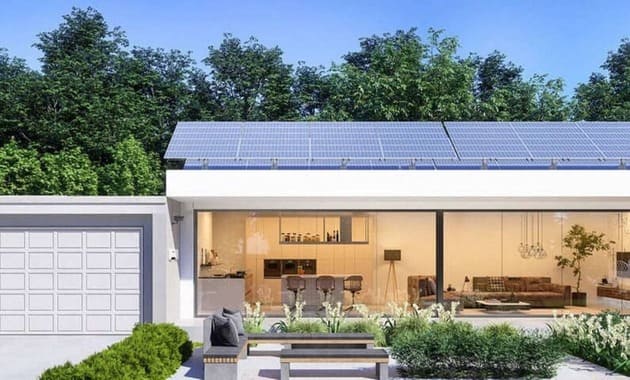

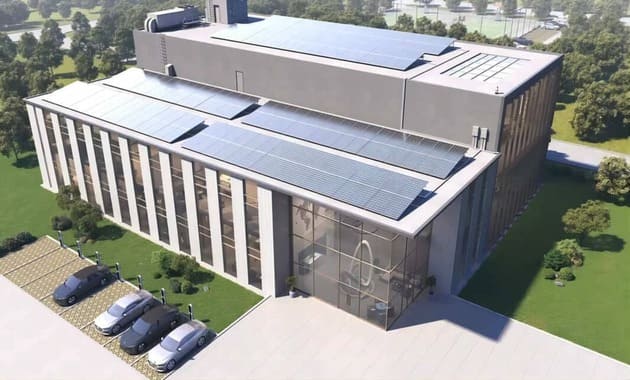

Handa HD Solar Connectors for Various Application Scenarios

HD Solar Connectors, Make Connection Simplier

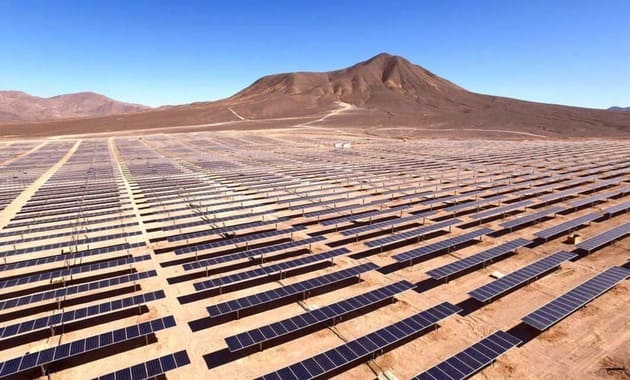

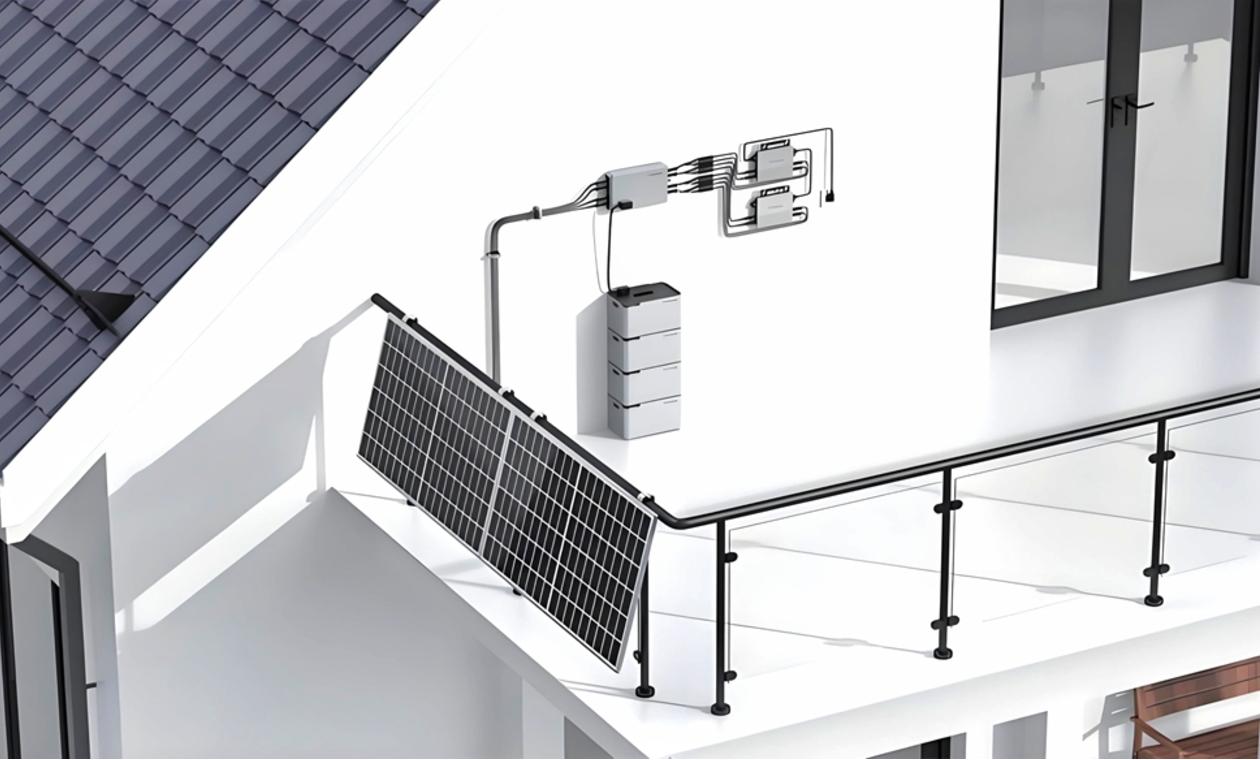

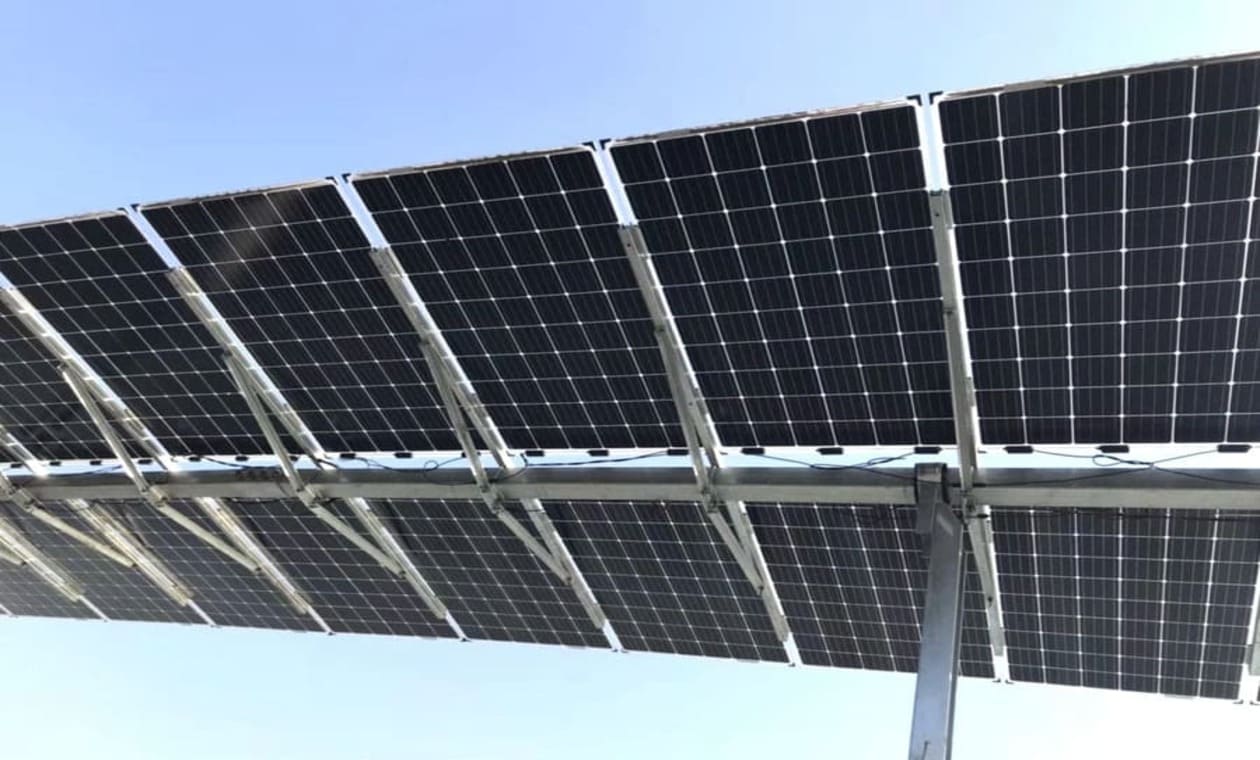

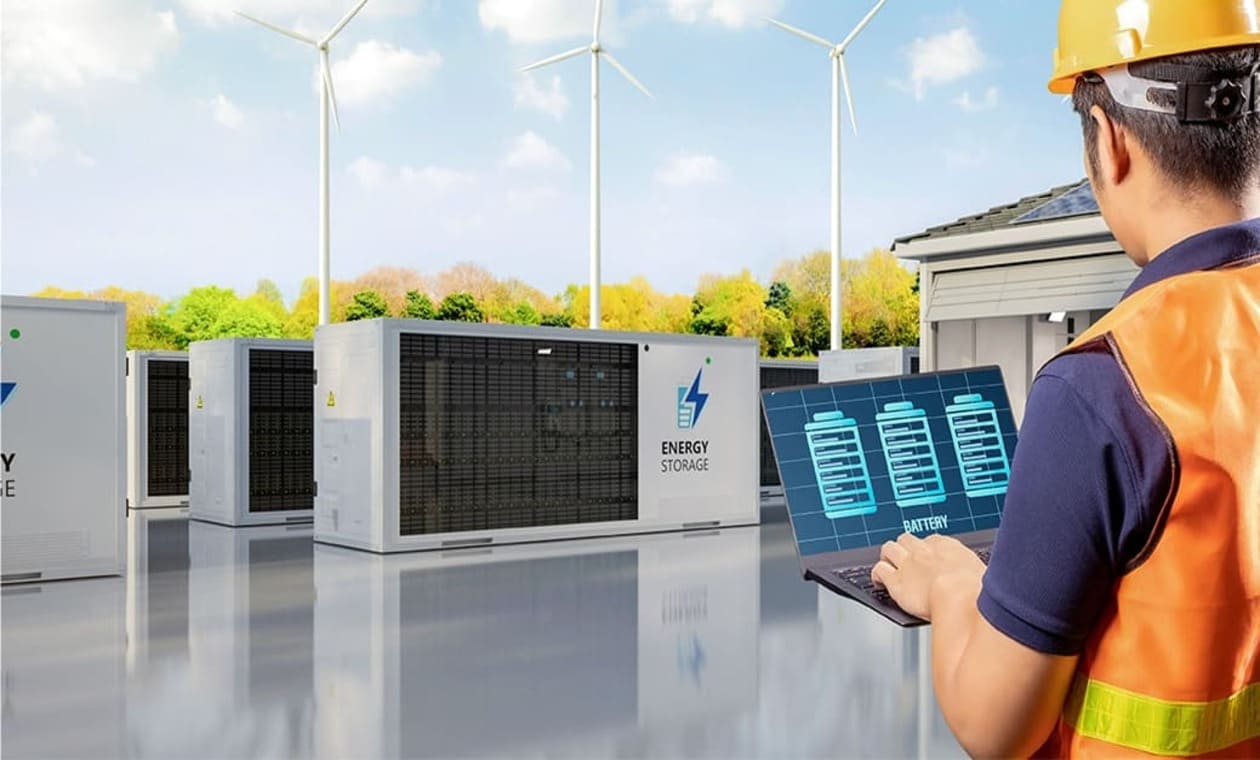

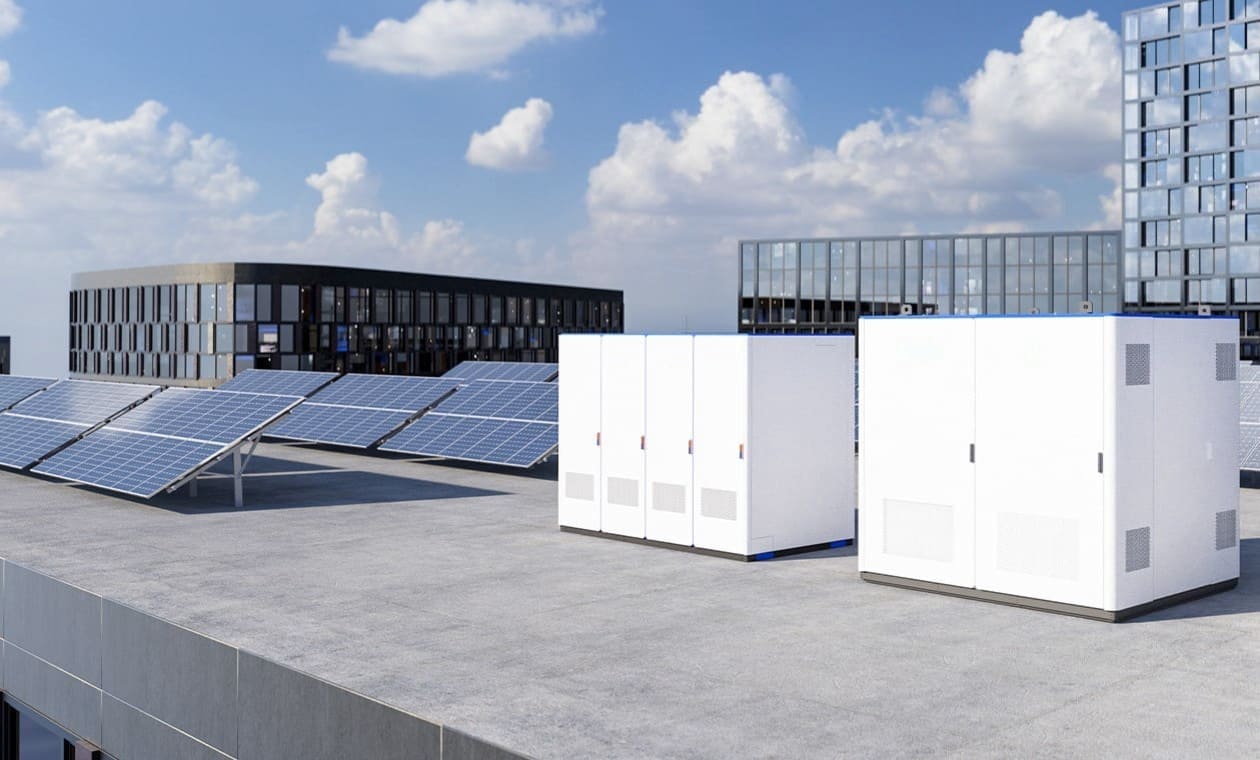

HANDA Power Technology, excels as a leading global manufacturer of solar connectors. In addition to our comprehensive product portfolio, which includes solar PV connectors, solar AC power connectors, solar communication connectors, and solar energy storgae connectors. Besides the diverse standarded solar connectors, HD specialize in customized connectors and solutions tailored for harsh environments. This adaptability and innovation in our product range address the specific needs of diverse solar industry applications such as household roof, balcony,PV farm,solar smart bracket system, commercial and industrial solar system and other demanding solar applications.

We are delighted to discuss your specific connector needs with you. Please fill out the form below to request more information about connector. A member of our team will respond within one working day to discuss your requirements.
