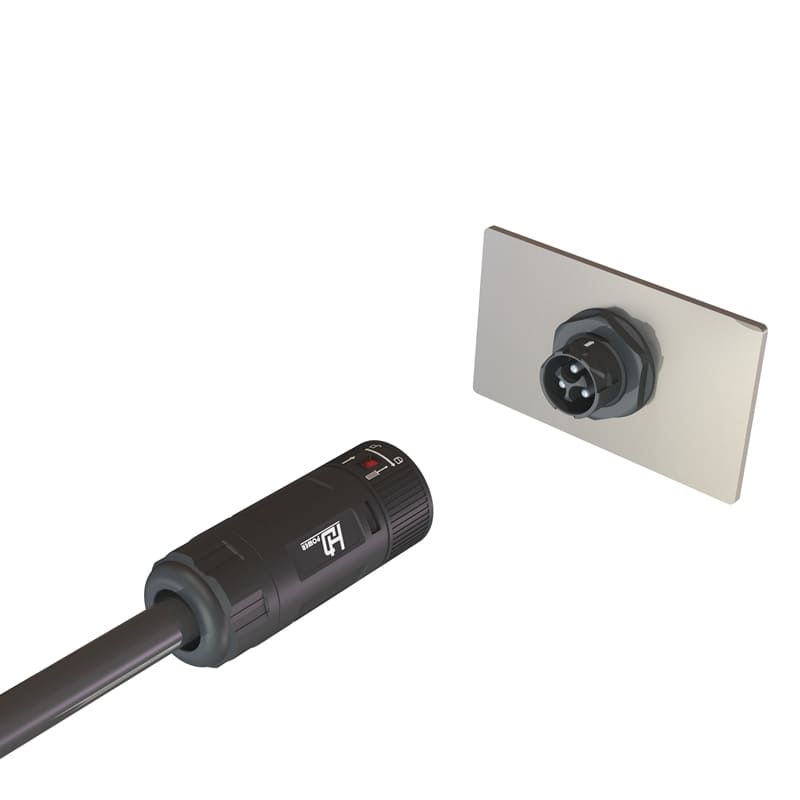

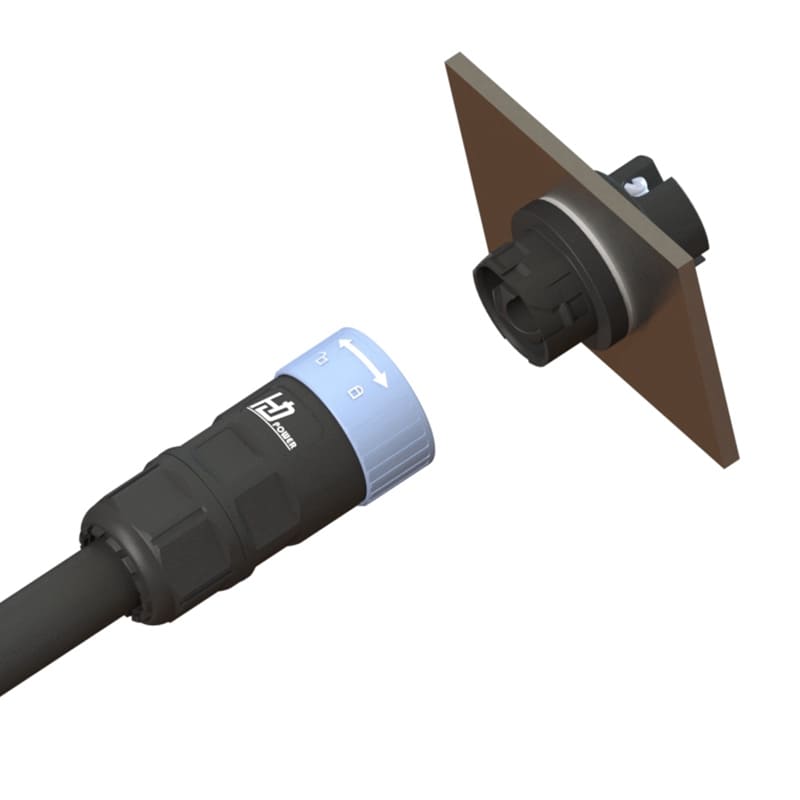

Solar AC M20 On-grid Connector

Handa HD brand Waterproof AC Connector M20 Male Socket Panel Connector to Female Plug Cable Connectors, 2pins, 3pins, 4pins and 5pins 4 types by tailored choice, 3pins is suitable for PV Solar inverter's(2-4KW) AC On-grid port, while 2/4/5 pins for AC LED Lighting Equipment.

Technical Data

Voltage (V)	TUV：600V UL：300V
Current (A)	TUV：32A UL：25A
Rated Impulse Voltage	4000V AC
Insulation Resistance	≥500MΩ
Contact Resistance	≤5mΩ

MORE

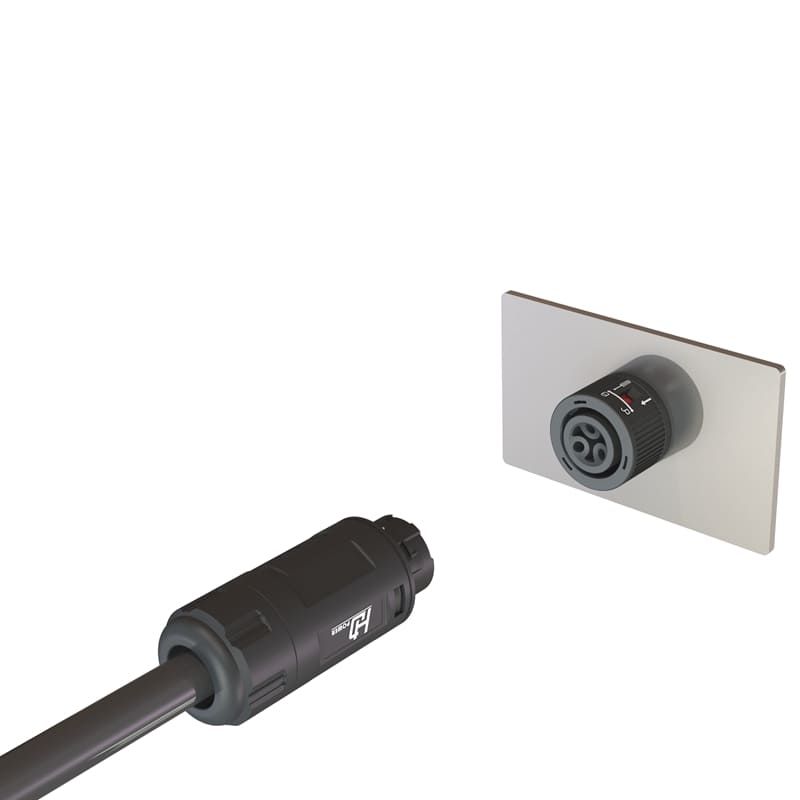

Solar AC M20 Off-grid Connector

Handa HD brand Waterproof AC Connector M20 Female Socket Panel Connector to Male Plug Cable Connectors, 2pins, 3pins, 4pins and 5pins 4 types by tailored choice, 3pins is suitable for PV Solar inverter's(2-4KW) AC Off-grid/Backup/EPS port, while 2/4/5 pins for AC LED Lighting Equipment.

Technical Data

Voltage (V)	TUV：600V UL：300V
Current (A)	TUV：32A UL：25A
Rated Impulse Voltage	4000V AC
Insulation Resistance	≥500MΩ
Contact Resistance	≤5mΩ

MORE

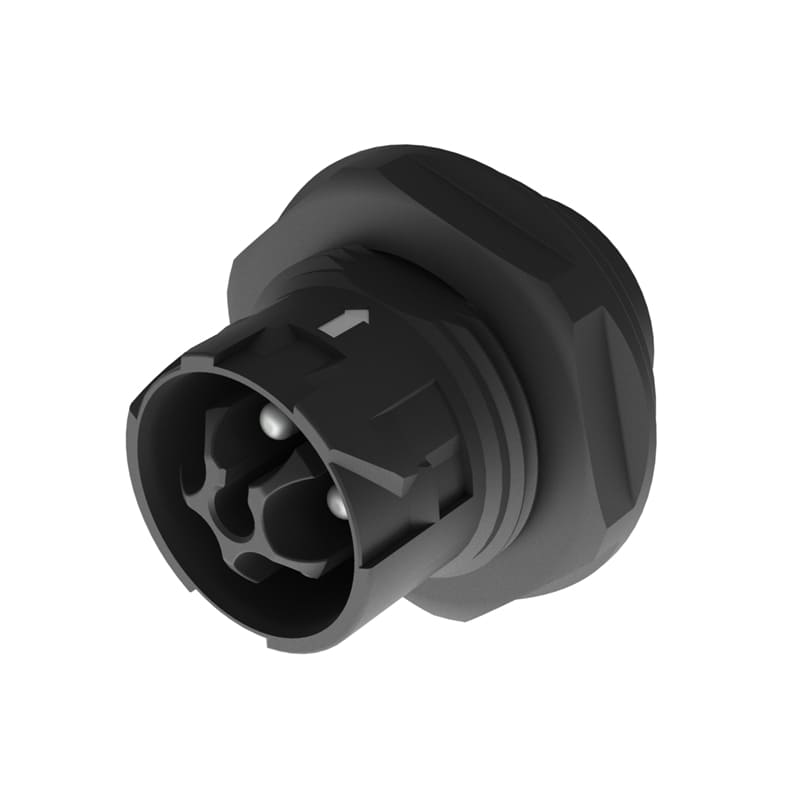

Solar AC M25 3 Pin On-grid Connector

Handa HD brand Waterproof AC Connector M25 3pin Male Socket Panel Connector to Female Plug Cable Connectors, is suitable for PV Solar inverter's(Single Phase 6KW) AC On-grid port, Non-tool unlock and Tool unlocking 2 modes for different choice, wire harness can be customized in the panel mount connector side.

Technical Data

Rated Voltage	600V AC
Rated Impulse Voltage	6KV
Rated Current	42A for 6mm² (10Awg)
Insulation Resistance	≥500MΩ
Contact Resistance	≤1mΩ

MORE

Solar AC M25 3 Pin Off-grid Connector

Handa HD brand Waterproof AC Connector M25 3pin Female Socket Panel Connector to Male Plug Cable Connectors, is suitable for PV Solar inverter's(Single Phase 6KW) AC Off-grid/Backup/EPS port, Non-tool unlock and Tool unlocking 2 modes for different choice, wire harness can be customized in the panel mount connector side.

Technical Data

Rated Voltage	600V AC
Rated Impulse Voltage	6KV
Rated Current	42A for 6mm² (10Awg)
Insulation Resistance	≥500MΩ
Contact Resistance	≤1mΩ

MORE

Solar AC M25 5 Pin On-grid Connector

Handa HD brand Waterproof AC Connector M25 5pin Male Socket Panel Connector to Female Plug Cable Connectors, is suitable for PV Solar inverter's(3 Phases 12KW) AC On-grid port, Non-tool unlock and Tool unlocking 2 modes for different choice, wire harness can be customized in the panel mount connector side.

Technical Data

Rated Voltage	600V AC
Rated Impulse Voltage	6KV
Rated Current	35A for 6mm² (TUV) 32A for 10Awg (UL)
Insulation Resistance	≥500MΩ
Contact Resistance	≤1mΩ

MORE

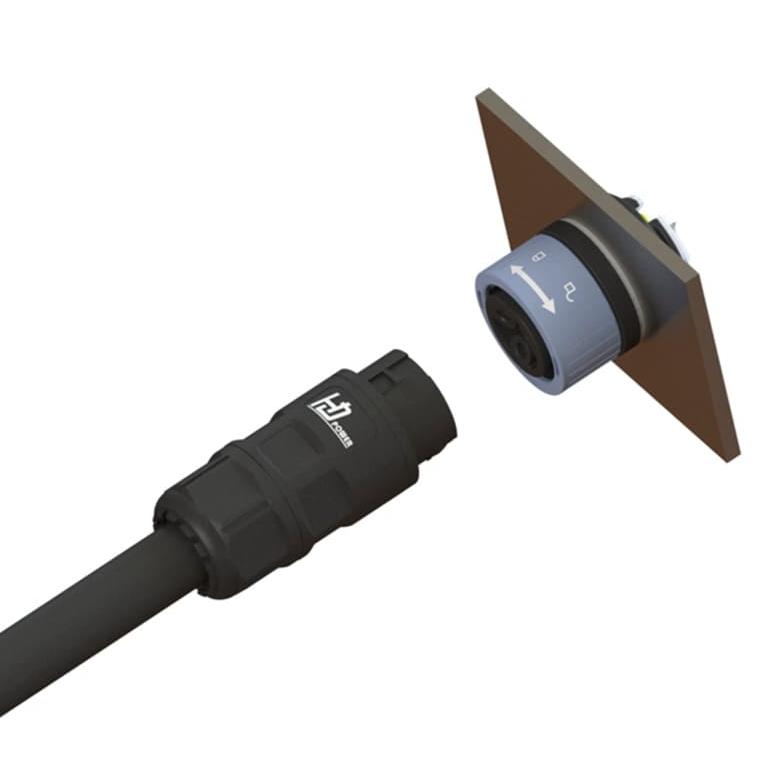

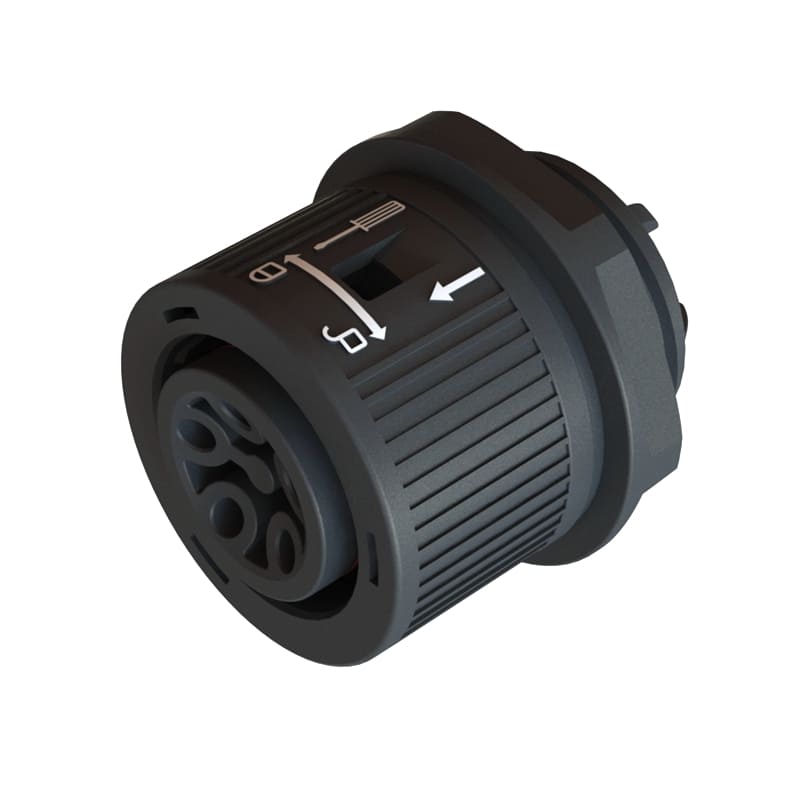

Solar AC M25 5 Pin Off-grid Connector

Handa HD brand Waterproof AC Connector M25 5pin Female Socket Panel Connector to Male Plug Cable Connectors, is suitable for PV Solar inverter's(3 Phases 12KW) AC Off-grid/Backup/EPS port, Non-tool unlock and Tool unlocking 2 modes for different choice, wire harness can be customized in the panel mount connector side.

Technical Data

Rated Voltage	600V AC
Rated Impulse Voltage	6KV
Rated Current	35A for 6mm² (TUV) 32A for 10Awg (UL)
Insulation Resistance	≥500MΩ
Contact Resistance	≤1mΩ

MORE

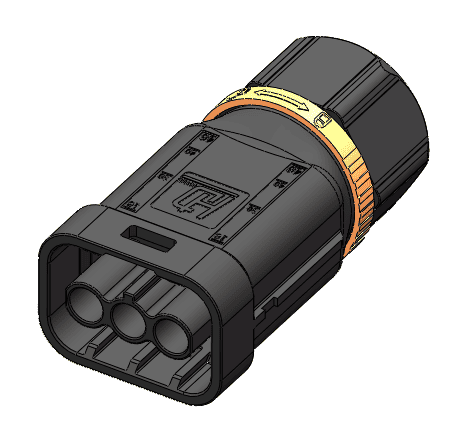

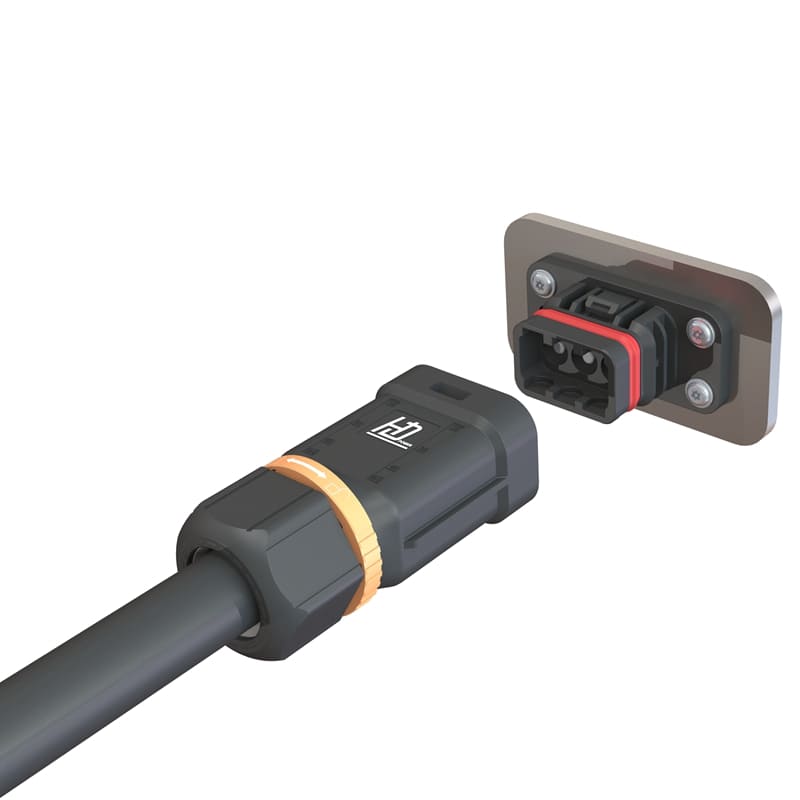

Solar AC 65A 3 Pin On-grid Connector

Handa HD brand Waterproof AC Power Connector 65A 3pin Male Socket Panel Connector to Female Plug Cable Connectors, is suitable for PV Solar inverter's(Single Phase 8-10KW) AC On-grid port, Non-tool unlock and Tool unlocking 2 modes for different choice, wire harness can be customized in the panel mount connector side.

Technical Data

Rated Voltagee（III/2)	1000V AC
Rated Impulse Voltage （III/2)	8KV
Rated Current	65A
Insulation Resistance	≥500MΩ
Contact Resistance	≤5mΩ
Rated Electrical Parameter	(III / 2) Overvoltage Category III / Pollution Degree 2

MORE

Solar AC 65A 3 Pin Off-grid Connector

Handa HD brand Waterproof AC Power Connector 65A 3pin Female Socket Panel Connector to Male Plug Cable Connectors, is suitable for PV Solar inverter's(Single Phase 8-10KW) AC Off-grid/Backup/EPS port, Non-tool unlock and Tool unlocking 2 modes for different choice, wire harness can be customized in the panel mount connector side.

Technical Data

Rated Voltagee（III/2)	1000V AC
Rated Impulse Voltage（III/2)	8KV
Rated Current	65A
Insulation Resistance	≥500MΩ
Contact Resistance	≤5mΩ
Rated Electrical Parameter	(III / 2) Overvoltage Category III / Pollution Degree 2

MORE

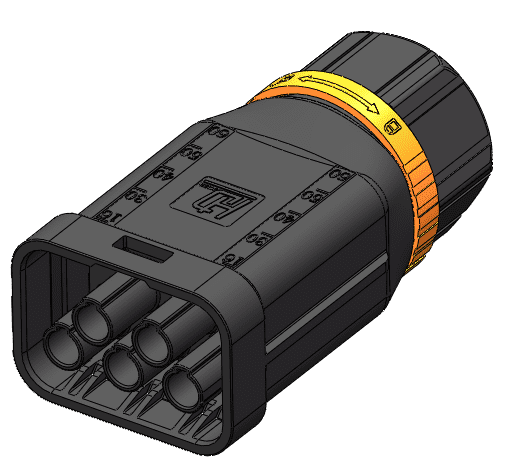

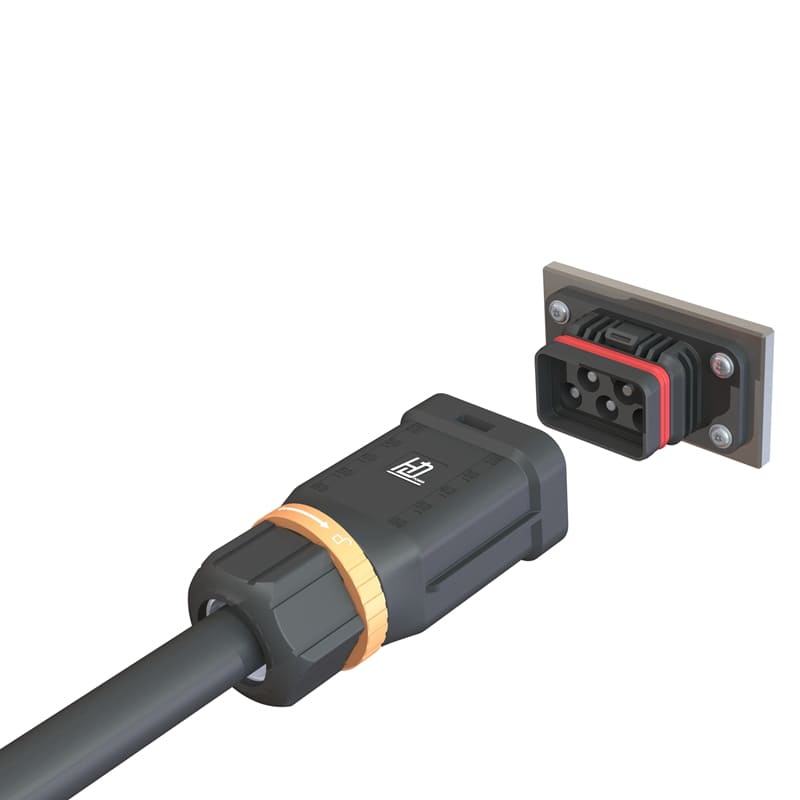

Solar AC 65A 5 Pin On-grid Connector

Handa HD brand Waterproof AC Power Connector 65A 5pin Male Socket Panel Connector to Female Plug Cable Connectors, is suitable for PV Solar inverter's(3 Phases 12-25KW) AC On-grid port, Non-tool unlock and Tool unlocking 2 modes for different choice, wire harness can be customized in the panel mount connector side.

Technical Data

Rated Voltagee（III/2)	1000V AC
Rated Impulse Voltage（III/2)	8KV
Rated Current	65A
Insulation Resistance	≥500MΩ
Contact Resistance	≤5mΩ
Rated Electrical Parameter	(III / 2) Overvoltage Category III / Pollution Degree 2

MORE

Solar AC 65A 5 Pin Off-grid Connector

Handa HD brand Waterproof AC Power Connector 65A 5pin Female Socket Panel Connector to Male Plug Cable Connectors, is suitable for PV Solar inverter's(3 Phases 12-25KW) AC Off-grid/Backup/EPS port, Non-tool unlock and Tool unlocking 2 modes for different choice, wire harness can be customized in the panel mount connector side.

Technical Data

Rated Voltagee（III/2)	1000V AC
Rated Impulse Voltage（III/2)	8KV
Rated Current	65A
Insulation Resistance	≥500MΩ
Contact Resistance	≤5mΩ
Rated Electrical Parameter	(III / 2) Overvoltage Category III / Pollution Degree 2

MORE
